此前我们 拆解了苹果 iPhone 4,今天从著名拆机网站 iFixit 转来苹果 iPod touch 4 的拆机全过程组图,一起看看 iPod touch 4 的内部构造和零件吧。图片超级多,请耐心等待网页加载。
![包装盒里的苹果 iPod touch 4 包装盒里的苹果 iPod touch 4](attachment.php?fid=2226)

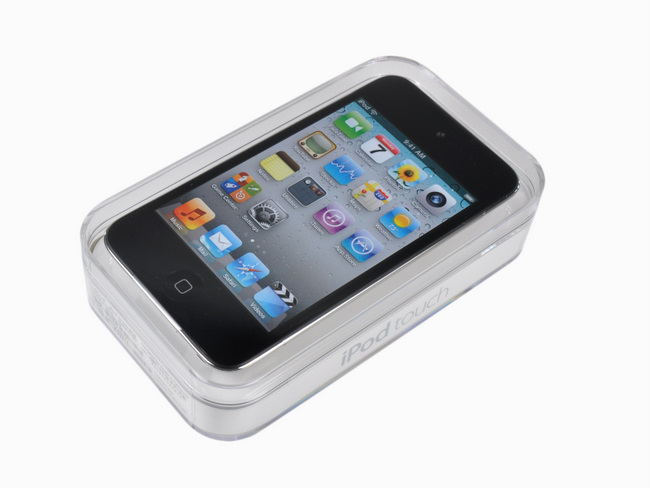

包装盒里的苹果 iPod touch 4
![苹果 iPod touch 4 型号信息 苹果 iPod touch 4 型号信息](attachment.php?fid=2227)

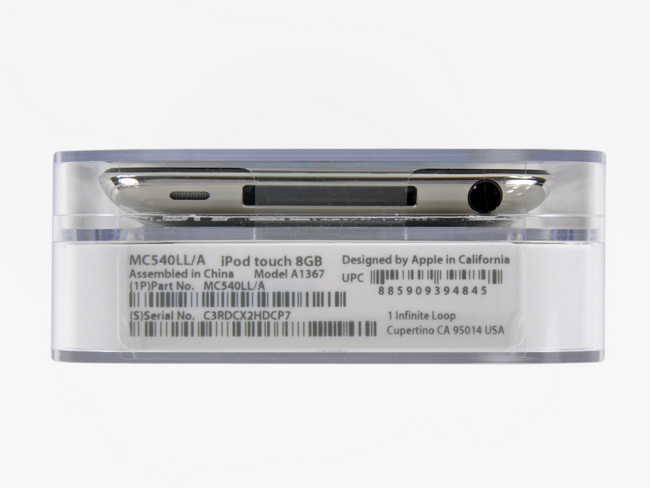

苹果 iPod touch 4 型号信息
![苹果 iPod touch 4 和上一代 iPod touch 对比 苹果 iPod touch 4 和上一代 iPod touch 对比](attachment.php?fid=2228)

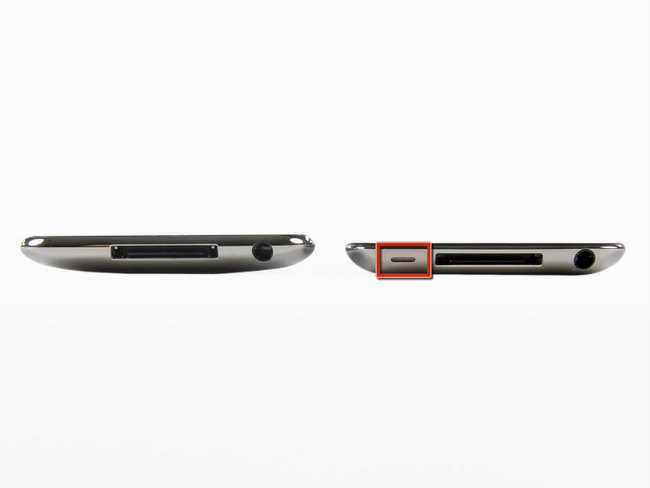

苹果 iPod touch 4 和上一代 iPod touch 对比:和 iPhone 4 一样,iPod touch 4 的背盖也从弧线改为平面风格,并在底部新增了外放扬声器开口
![苹果 iPod touch 4 和上一代 iPod touch 对比 苹果 iPod touch 4 和上一代 iPod touch 对比](attachment.php?fid=2229)

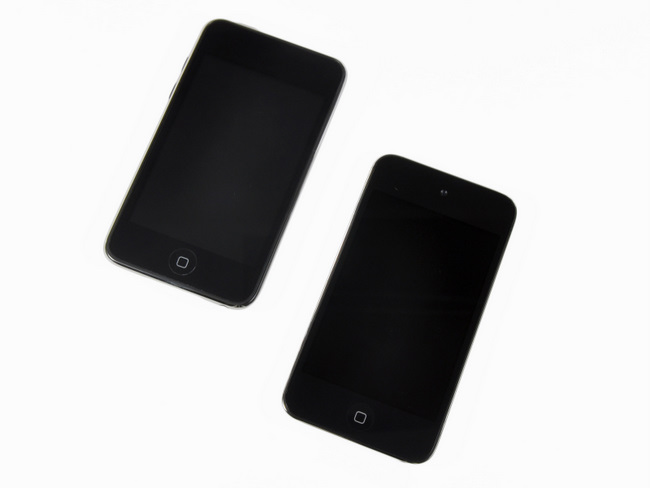

苹果 iPod touch 4 和上一代 iPod touch 对比:除了上部多了一颗摄像头,iPod touch 4 屏幕在关机时明显更黑一些
![苹果 iPod touch 4 机身背面的主摄像头 苹果 iPod touch 4 机身背面的主摄像头](attachment.php?fid=2230)

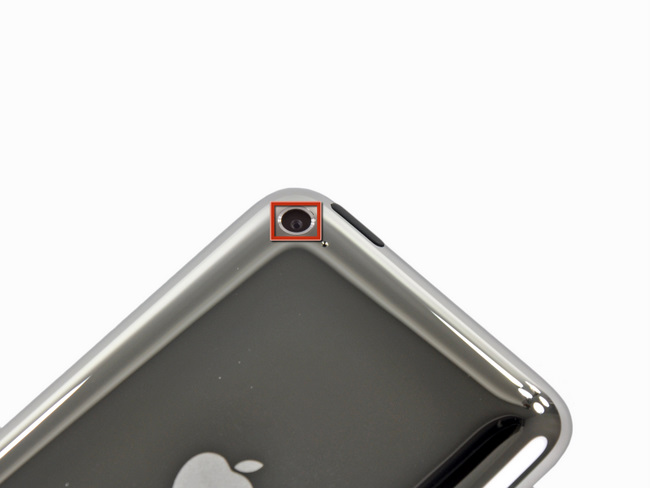

苹果 iPod touch 4 机身背面的主摄像头,摄像头一旁还有一个麦克风开孔
![苹果 iPod touch 4 机身背面的主摄像头 苹果 iPod touch 4 机身背面的主摄像头](attachment.php?fid=2231)

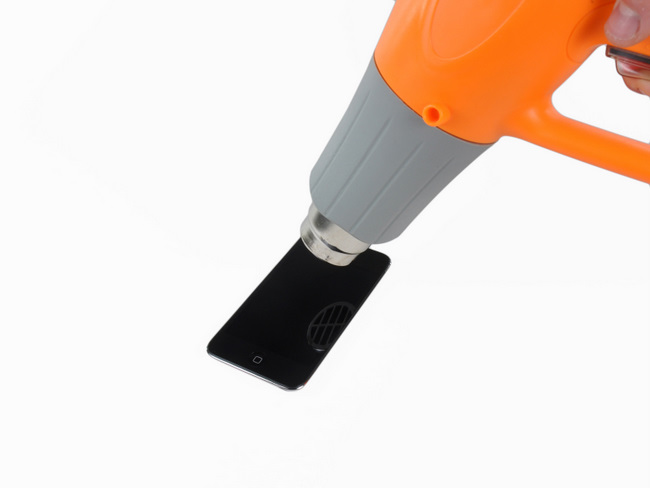

苹果 iPod touch 4 机身外没有螺丝,要热风枪把胶吹化
![撬开苹果 iPod touch 4 屏幕 撬开苹果 iPod touch 4 屏幕](attachment.php?fid=2232)

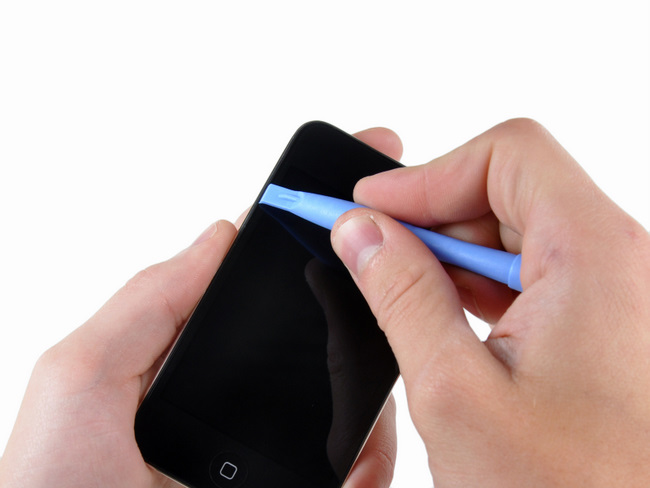

撬开苹果 iPod touch 4 屏幕
![打开苹果 iPod touch 4 屏幕 打开苹果 iPod touch 4 屏幕](attachment.php?fid=2233)

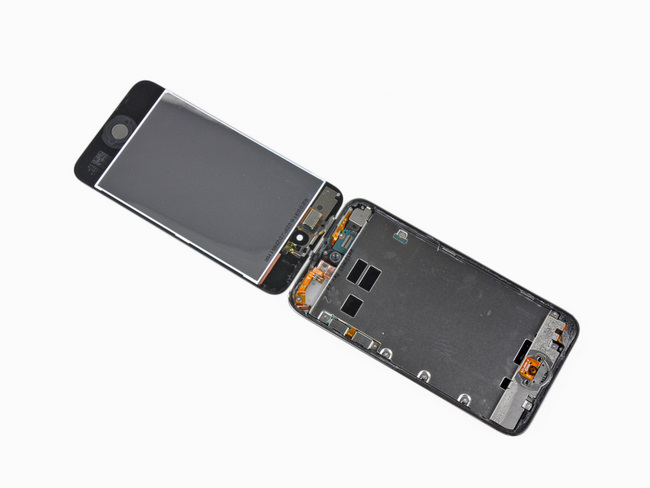

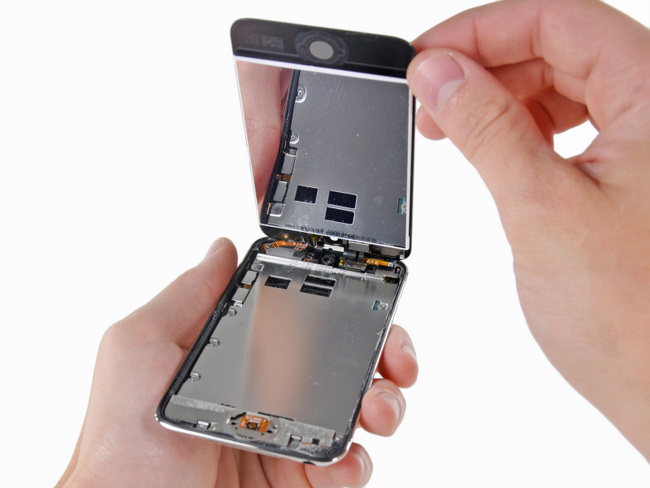

打开苹果 iPod touch 4 屏幕
![苹果 iPod touch 4 屏幕模块和主板模块 苹果 iPod touch 4 屏幕模块和主板模块](attachment.php?fid=2234)

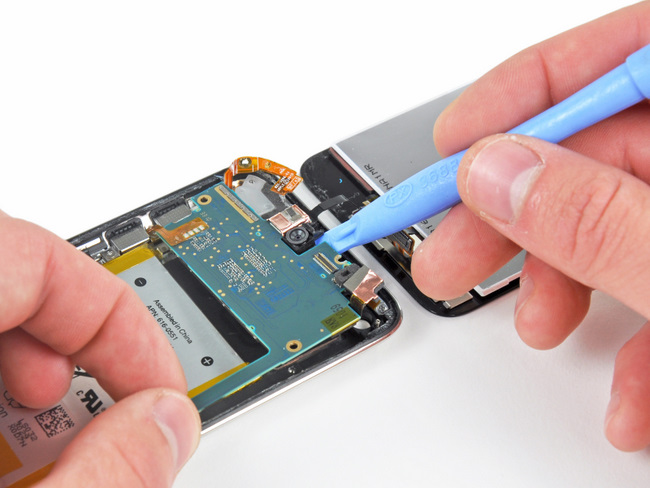

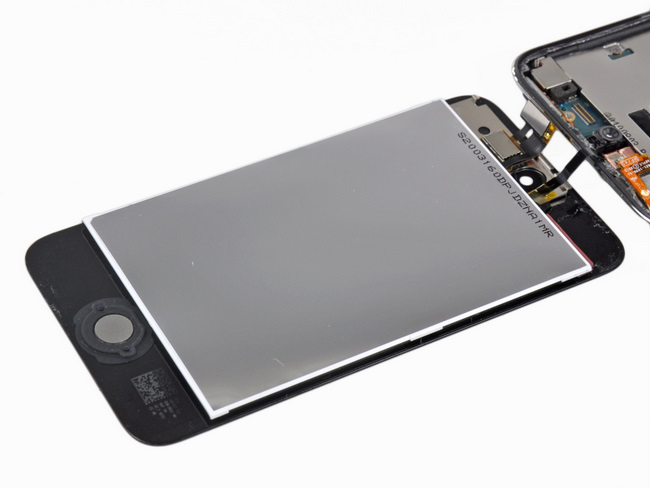

苹果 iPod touch 4 屏幕模块和主板模块
![苹果 iPod touch 4 屏幕模块和主板模块之间的排线 苹果 iPod touch 4 屏幕模块和主板模块之间的排线](attachment.php?fid=2235)
苹果 iPod touch 4 屏幕模块和主板模块之间的排线
![苹果 iPod touch 4 主板屏蔽层的螺丝 苹果 iPod touch 4 主板屏蔽层的螺丝](attachment.php?fid=2236)

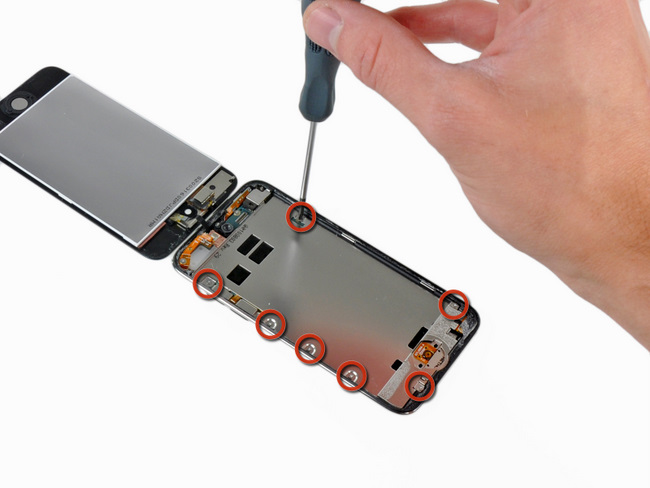

拧下苹果 iPod touch 4 主板屏蔽层的固定螺丝
![苹果 iPod touch 4 主板屏蔽层 苹果 iPod touch 4 主板屏蔽层](attachment.php?fid=2237)

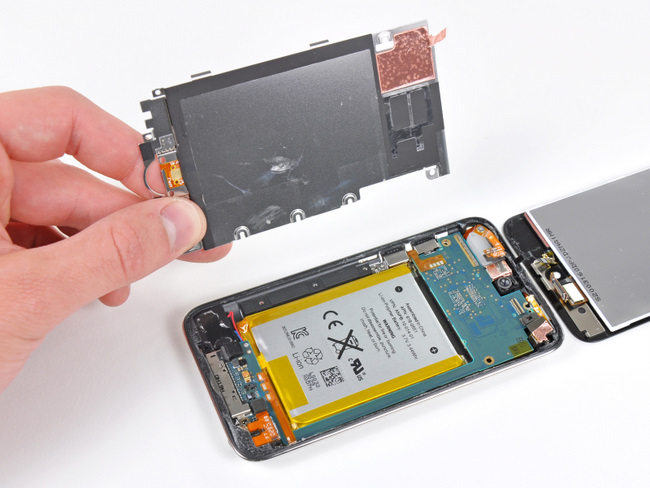

撬下苹果 iPod touch 4 的主板屏蔽层,这块金属板重达11克
![苹果 iPod touch 4 主板和电池 苹果 iPod touch 4 主板和电池](attachment.php?fid=2238)

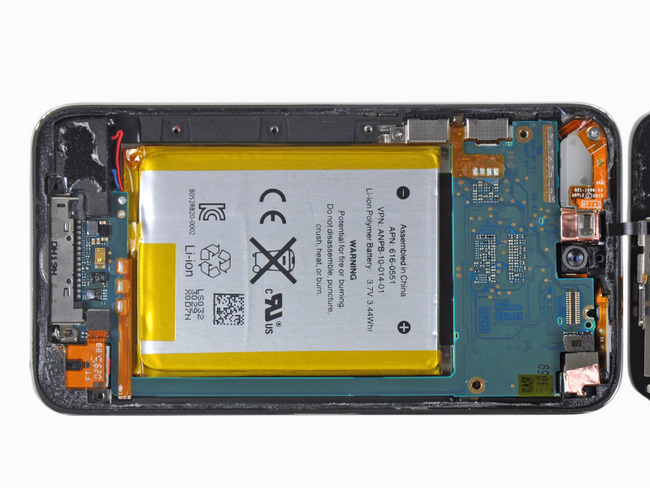

苹果 iPod touch 4 的主板和电池都在金属屏蔽层下面
![苹果 iPod touch 4 电池 苹果 iPod touch 4 电池](attachment.php?fid=2239)
苹果 iPod touch 4 的电池,3.7V 3.44Whr,与主板焊接在一起,可播放 40 小时音乐。
![苹果 iPod touch 4 耳机接口 苹果 iPod touch 4 耳机接口](attachment.php?fid=2240)

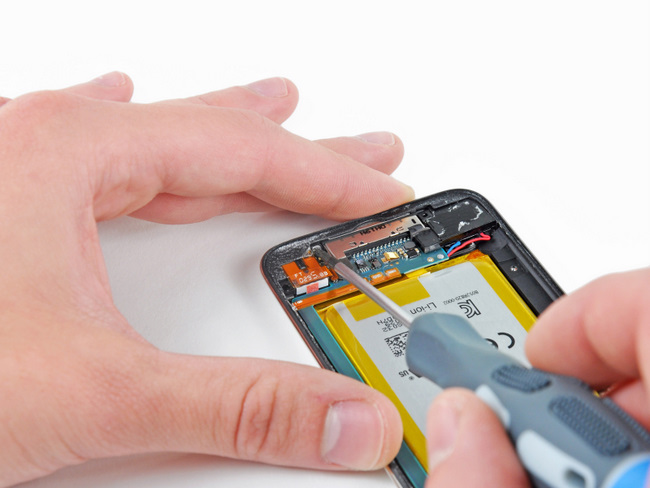

下面拆下苹果 iPod touch 4 的耳机接口
![苹果 iPod touch 4 耳机接口排线 苹果 iPod touch 4 耳机接口排线](attachment.php?fid=2241)

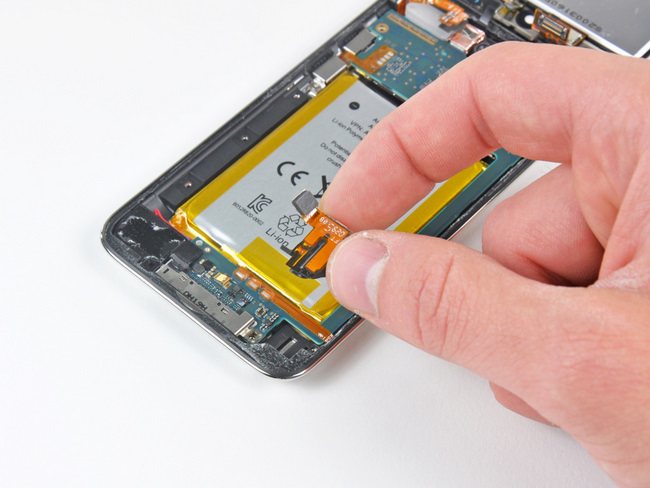

断开苹果 iPod touch 4 的耳机接口排线
![苹果 iPod touch 4 耳机接口模块 苹果 iPod touch 4 耳机接口模块](attachment.php?fid=2242)
拆下苹果 iPod touch 4 的耳机接口模块
![苹果 iPod touch 4 耳机接口模块 苹果 iPod touch 4 耳机接口模块](attachment.php?fid=2243)

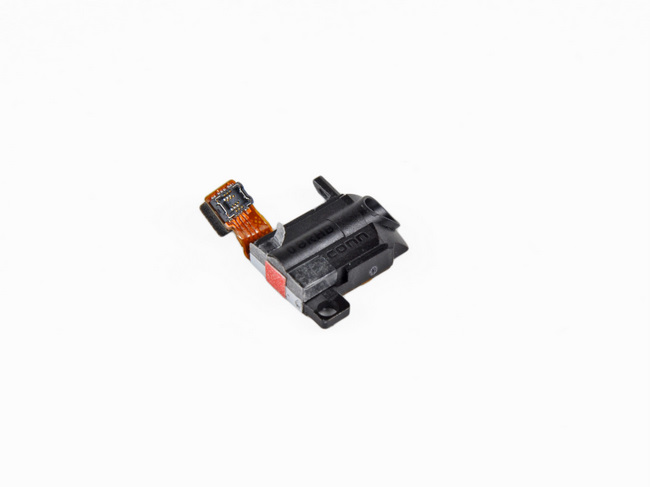

苹果 iPod touch 4 的耳机接口模块特写,富士康制造,底部还有水毁试纸
![苹果 iPod touch 4 主板和电池 苹果 iPod touch 4 主板和电池](attachment.php?fid=2244)

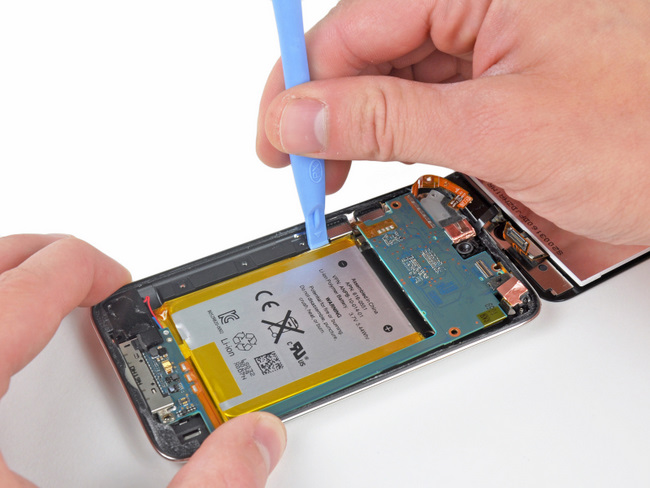

拆除苹果 iPod touch 4 的主板和电池,胶粘的,主要靠撬
![苹果 iPod touch 4 主板和电池 苹果 iPod touch 4 主板和电池](attachment.php?fid=2245)

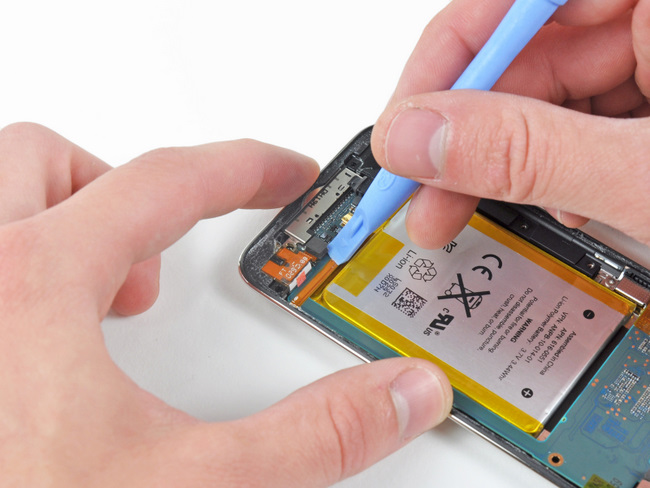

撬开苹果 iPod touch 4 的电池
包装盒里的苹果 iPod touch 4
苹果 iPod touch 4 型号信息
苹果 iPod touch 4 和上一代 iPod touch 对比:和 iPhone 4 一样,iPod touch 4 的背盖也从弧线改为平面风格,并在底部新增了外放扬声器开口
苹果 iPod touch 4 和上一代 iPod touch 对比:除了上部多了一颗摄像头,iPod touch 4 屏幕在关机时明显更黑一些
苹果 iPod touch 4 机身背面的主摄像头,摄像头一旁还有一个麦克风开孔
苹果 iPod touch 4 机身外没有螺丝,要热风枪把胶吹化
撬开苹果 iPod touch 4 屏幕
打开苹果 iPod touch 4 屏幕
苹果 iPod touch 4 屏幕模块和主板模块
苹果 iPod touch 4 屏幕模块和主板模块之间的排线
拧下苹果 iPod touch 4 主板屏蔽层的固定螺丝
撬下苹果 iPod touch 4 的主板屏蔽层,这块金属板重达11克
苹果 iPod touch 4 的主板和电池都在金属屏蔽层下面
苹果 iPod touch 4 的电池,3.7V 3.44Whr,与主板焊接在一起,可播放 40 小时音乐。
下面拆下苹果 iPod touch 4 的耳机接口
断开苹果 iPod touch 4 的耳机接口排线
拆下苹果 iPod touch 4 的耳机接口模块
苹果 iPod touch 4 的耳机接口模块特写,富士康制造,底部还有水毁试纸
拆除苹果 iPod touch 4 的主板和电池,胶粘的,主要靠撬
撬开苹果 iPod touch 4 的电池
